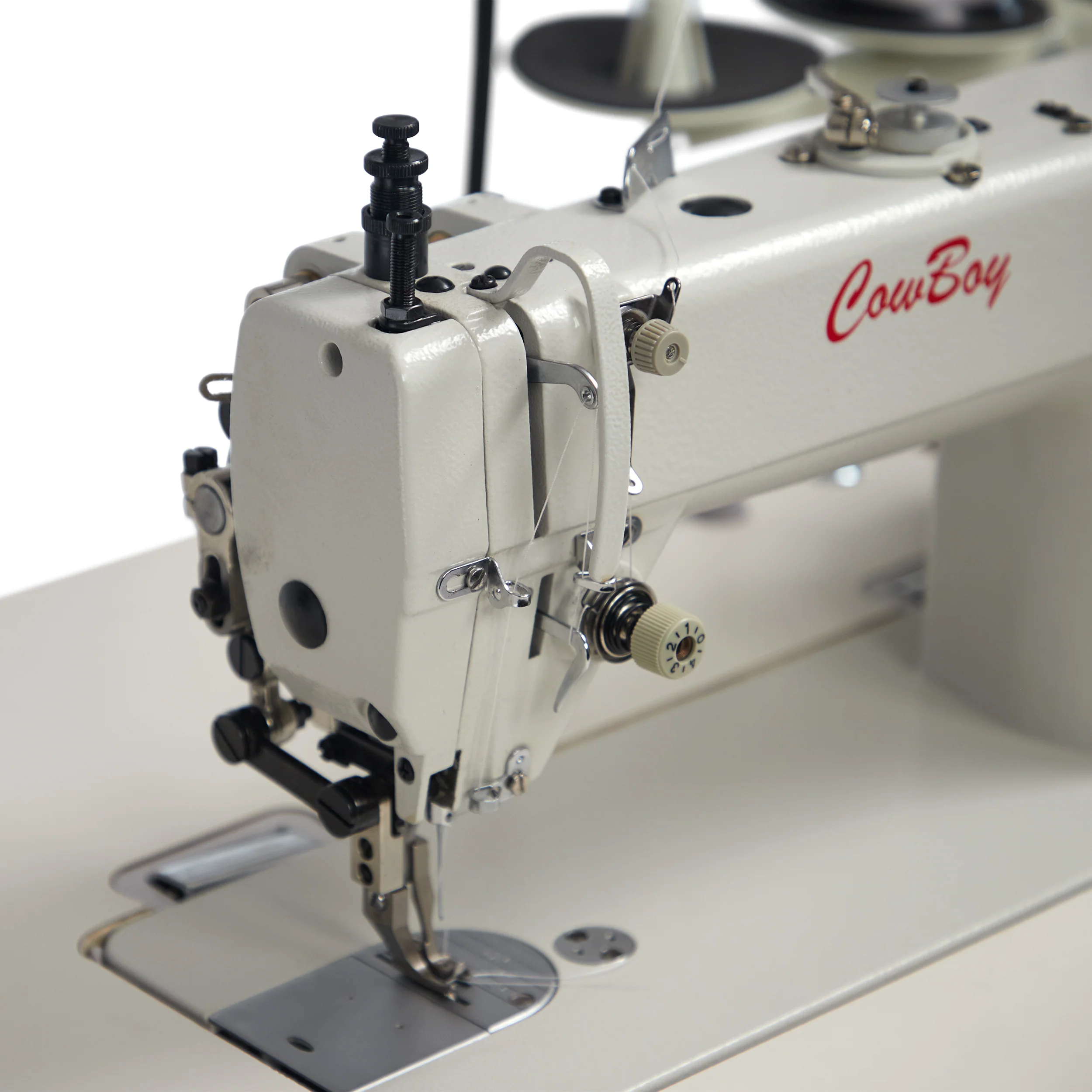

Cowboy 797 Sewing Machine

The 797 is an excellent machine for sewing upholstery items, wallets, purses, handbags, dress belts, clutches, chaps, chinks, as well as canvas tents, bimini tops for boats, and marine vinyl. The machine features a reliable walking foot design with feed dog that is ideal for sewing multiple layers of material without the worry of ply slippage. Made of all solid cast iron construction with heat treated high carbon steel parts, the 797 is a durable workhorse that is built to withstand the most rigorous sewing projects. This machine features fully operational reverse, adjustable thread tensions both top and bottom, adjustable presser foot tensions, and adjustable stitch length.

Features

• Arm length 10.5 inches to the right of the needle
• Large capacity M class hook and bobbin
• Walking foot with needle feed
• Full reverse mechanism
• Auto lubricating wet sump pump style lubrication system
• Knee style presser foot lifter
• Hand presser foot lifting lever in back of the machine
• Height adjustable stand
• Variable speed servo motor
• High quality wooden top with rubber bumpers
• Kinedyne DC servo motor: Slowest, high-power industry option for sewing control
• Super bright LED sewing light: Provides ample illumination for the sewing area without generating excessive heat

Includes

• Standard Presser Foot Set
• Left Presser Foot Set
• 0.5 lb Cone of White 92 Thread
• 135x16 leather point needles in size 21 (10)

• Bobbins (4)
• Extra Belt Pulley (65mm)
• Paraffin Oil
• LED Lamp
• Thread Stand
• Tool Kit (1/4” Screwdriver, 3/16” Screwdriver, 1/8” Screwdriver, & Adjustable Wrench)
• Instructions (English, Spanish, French)

• Operational Manual
• Motor Manual


Specifications

• Machine Head Dimensions: 23.6 in. x 21.6 in. x 10.6 in. (60 cm x 55 cm x 27 cm)
• Machine Head Weight: 80 lbs (36.29 kg)
• Servo Motor Dimensions: 13 in. x 14 in. x 12.6 in. (33 cm x 36 cm x 32 cm)
• Servo Motor Weight: 18.4 lbs (8.35 kg)
• Stand Dimensions: 39.4 in. x 22.4 in. x 2.8 in. (100 cm x 57 cm x 7 cm)
• Stand Weight: 27 lbs (12.25 kg)
• Table Dimensions: 49.2 in. x 22.4 in. x 2.6 in. (125 cm x 57 cm x 7 cm)
• Table Weight: 36.5 lbs (16.56 kg)
• Stitches materials with a thickness up to 5/16" (8 mm)
• 750 Watts
• 50-2500 RPM
• Materials: Cast iron, carbon steel

Compatibility

• Sewing Machine Needles Size 14-23
• Needle System: 135x16/17
• Thread Size 33-138
• Cowboy 797 Bobbin Case
• Cowboy 797 Bobbin 3 Pack

Assembly

• Drilling required, see video for detailed instructions
• Photo packet shows assembled machine
